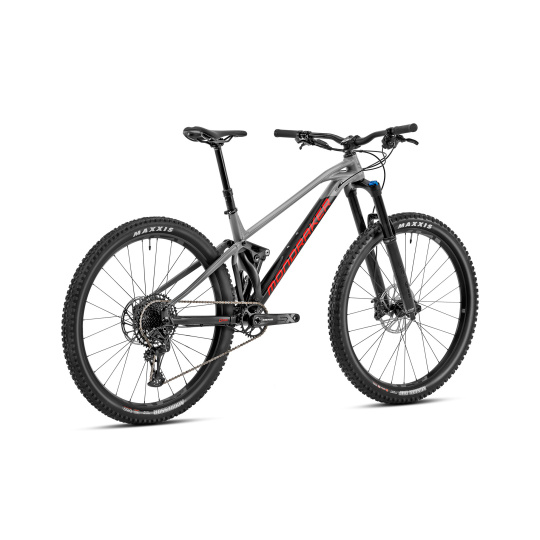

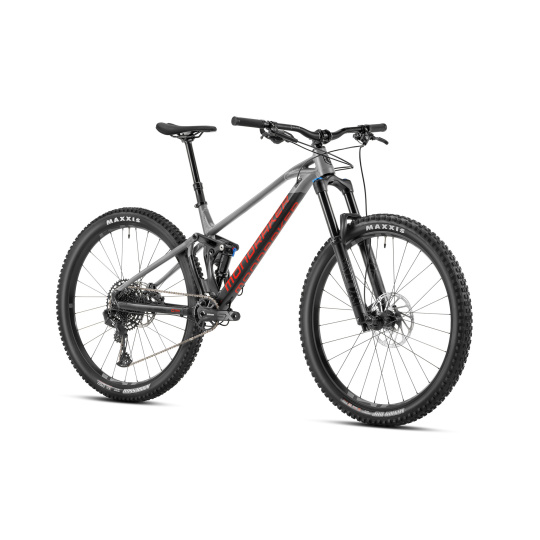

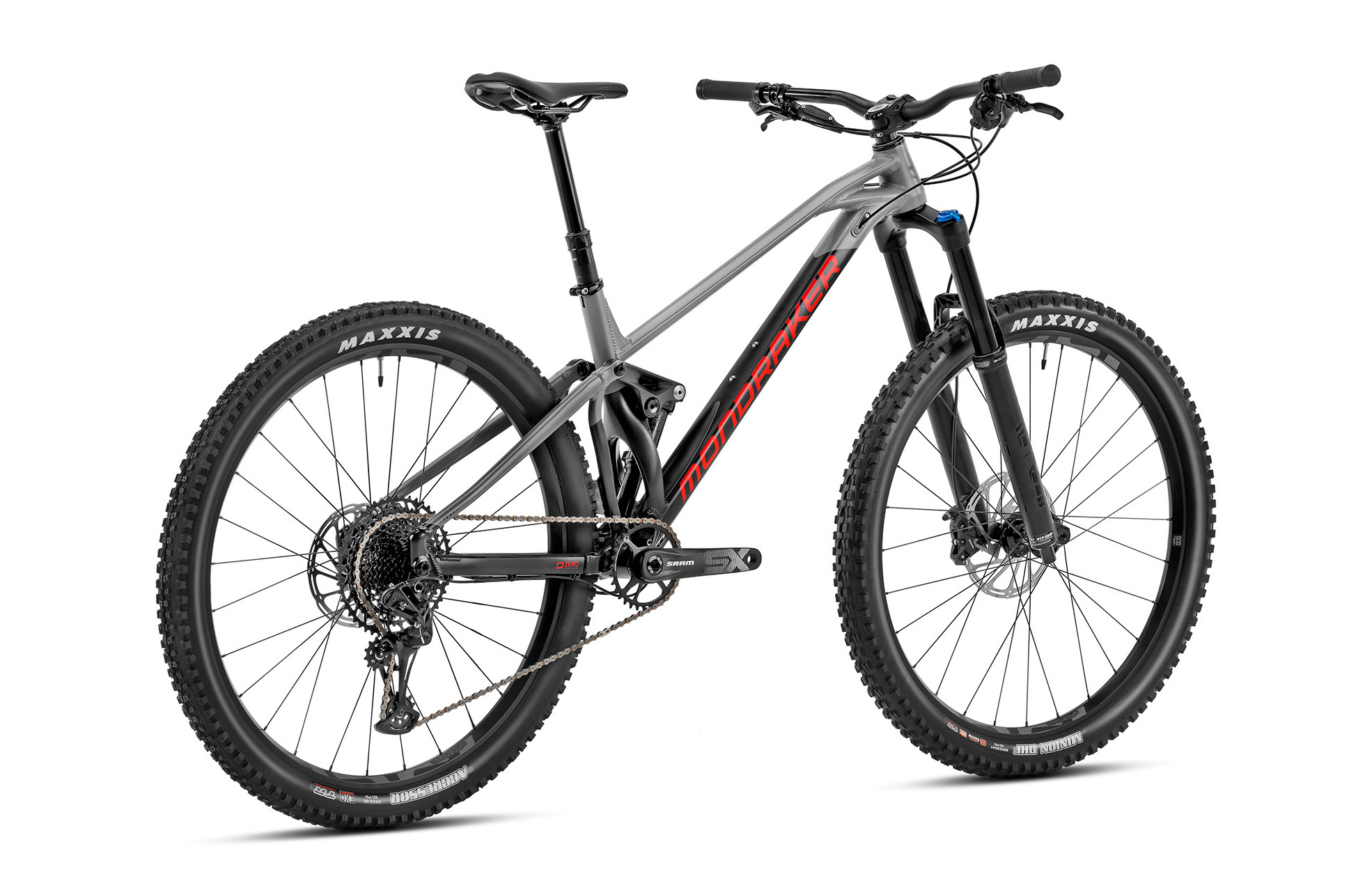

Horské kolo MONDRAKER Foxy, vel. M, black/nimbus grey/flame red, 2023
Opis i parametry
Horské kolo MONDRAKER Foxy, vel. M, black/nimbus grey/flame red, 2023
FOXY je jedním nejprodávanějších kol značky Mondraker. Užívat si můžete s hliníkovým rámem 6061 STEALTH EVO stejně jako systémem FORWARD GEOMETRY a ZERO SUSPENSION SYSTEM. Když k tomu přidáme jeho vynikající poměr ceny a užitné hodnoty, je to silný kandidát na enduro kolo sezóny. Sestaven s prověřenými značkovými komponenty jako je odpružení Fox, převodem SRAM SX Eagle, e*třináctkovými koly LG1 Plus Enduro, brzdami SRAM G2 R a komponenty ONOFF. Kolo nabízí zdvih 160 mm vpředu a 150 mm vzadu.
vyráběné velikosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
rám
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
vidlice
Fox 36 29 Float GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Fox 36 29 Float GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
řazení
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram G2 R, tool-free reach adjust
Sram G2 R, tool-free reach adjust
kliky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
sedlo
SDG BEL-AIR 3.0, LPU foam, steel rails
SDG BEL-AIR 3.0, LPU foam, steel rails
náboj přední
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
náboj zadní
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1210, 11-50T, 12s
Sram PG-1210, 11-50T, 12s
dráty
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
ráfky
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
pláště
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
obj.c.
010.23101
010.23101
gripy
Onoff Twin, 1lock-on, 135mm
Onoff Twin, 1lock-on, 135mm
tlumič
Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings
Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings
přední brzda
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadní brzda
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
nastavení tlumiče
Light compression, light rebound, air volume spacer 0.6
Light compression, light rebound, air volume spacer 0.6
převodník
32T, steel, X-Sync 2
32T, steel, X-Sync 2
patka k přehazovačce
Mondraker M068
Mondraker M068
ParametryDodaj do porównania
vyráběné velikosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
rám
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
vidlice
Fox 36 29 Float GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
řazení
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
kliky a převodníky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
řidítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
sedlo
SDG BEL-AIR 3.0, LPU foam, steel rails
náboj přední
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
náboj zadní
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
řetěz
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1210, 11-50T, 12s
ráfky
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
pláště
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
brzdové páčky
Sram G2 R, tool-free reach adjust
hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
středové složení
Sram DUB BSA, sealed bearings, 73mm
dráty
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Určeno pro (kola cyklo)
Unisex
Typ kola (cyklo)
Horské
Materiál rámu (cyklo)
Hliník
Odpružení kola (cyklo)
Celoodpružené
Zdvih (cyklo)
150 mm
Pohon (cyklo)
Klasické kolo
Průměr kol (cyklo)
29"
Velikost rámu (cyklo)
M
Typ brzd (cyklo)
Kotoučové hydraulické
Barva (jízdní kolo, batohy)
Šedá
