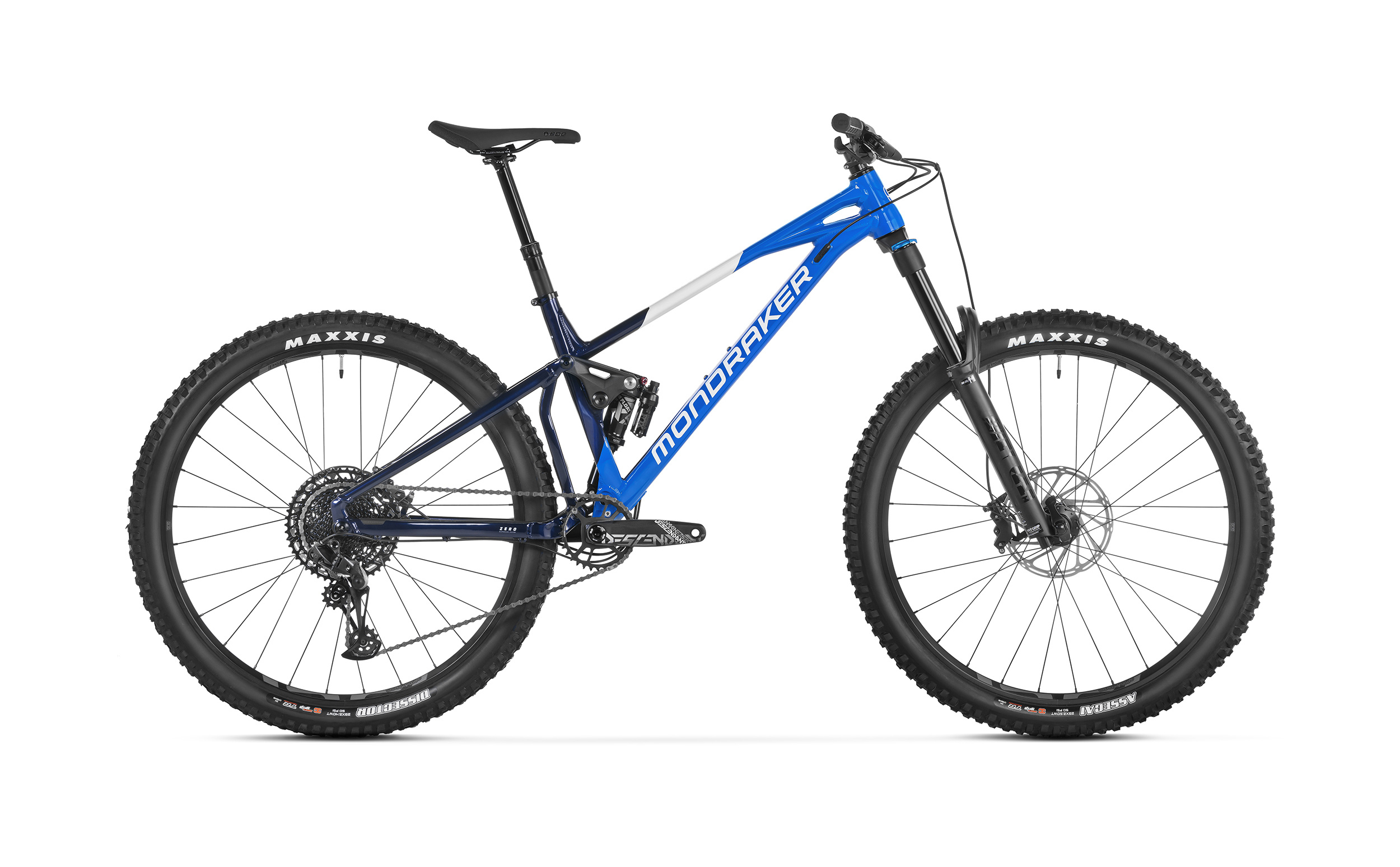

MONDRAKER MONDRAKER Superfoxy, carrera blue/navy blue, 2024 Velikost S
Description and parameters
MONDRAKER MONDRAKER Superfoxy, carrera blue/navy blue, 2024
MONDRAKER MONDRAKER Superfoxy, carrera blue/navy blue, 2024
ParametersAdd to Compare
Velikost
L
Přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
Vidlice
Fox 38 29 Float RHYTHM 170mm, GRIP damper, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Velikosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rám
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sedlo
SDG BEL-AIR 3.0, LPU foam, steel rails
Materiál rámu
ALUMINIUM
Dráty
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Typ vidlice
SUSPENSION FORK
Zadní brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páčky
Sram DB8, tool reach adjust, lever pivot bushings
Představec
Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
Převodník
32T, CNC-machined alloy, X-SYNC 2
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Středové složení
Sram DUB BSA, sealed bearings, 73mm, superboost
Přední brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Velikost kol
29
Kliky
Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Počet převodů
1X12
Ráfky
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Řídítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
Řetěz
Sram SX Eagle, 12s, Powerlock
Zadní náboj
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Přední náboj
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Zadní plášť
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Řadící páčka
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Přední plášť
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Patka přehazovačky
Mondraker M068
Kazeta
Sram PG-1210, 11-50T, 12s
Hmotnost
17,4 kg
Nastavení tlumiče
Medium compression, Medium rebound, 0.2 air volume spacer
Zadní tlumič
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Sezóna
jaro/léto 24
Pohlaví
unisex
Barva
Blue
Velikost dodavatele
L
