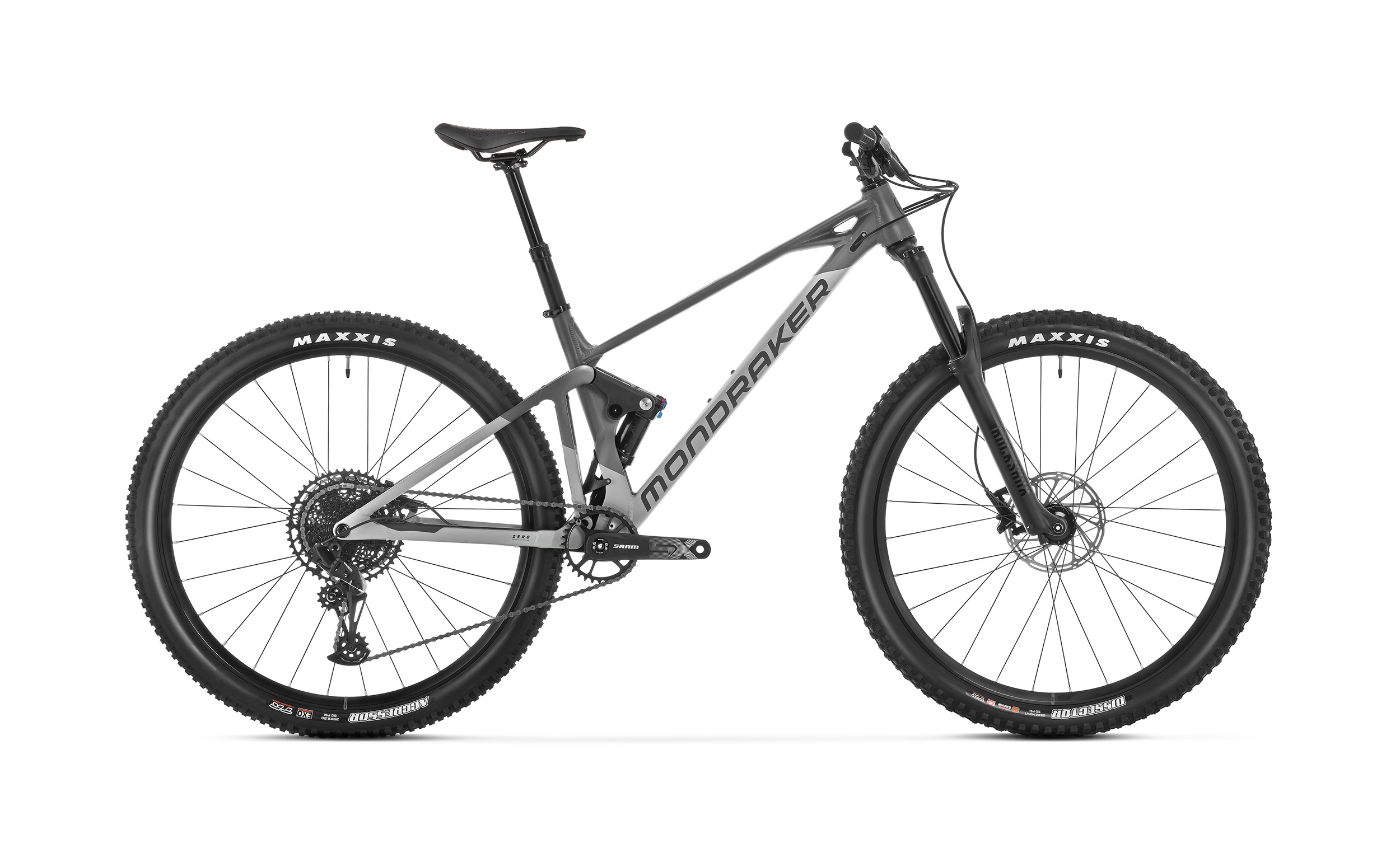

MONDRAKER MONDRAKER Raze, fog grey/nimbus grey/vortex grey, 2024 Velikost L
Description and parameters
MONDRAKER MONDRAKER Raze, fog grey/nimbus grey/vortex grey, 2024
MONDRAKER MONDRAKER Raze, fog grey/nimbus grey/vortex grey, 2024
ParametersAdd to Compare
Velikost
L
Přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
Vidlice
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Velikosti
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rám
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sedlo
Mondraker MDK Series, SRX, steel rail
Materiál rámu
ALUMINIUM
Dráty
Mavic 28 round j-bend stainless steel
Typ vidlice
SUSPENSION FORK
Zadní brzda
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brzdové páčky
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Představec
Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
Převodník
32T, steel, X-Sync 2
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Středové složení
Sram DUB BSA, sealed bearings, 73mm
Přední brzda
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Velikost kol
29
Kliky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Počet převodů
1X12
Ráfky
Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28 spokes
Řídítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
Řetěz
Sram SX Eagle, 12s, Powerlock
Zadní náboj
Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Přední náboj
Mavic Boost 15x110mm, sealed bearings, IS 6 bolts
Zadní plášť
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Řadící páčka
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Přední plášť
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Patka přehazovačky
Sram UDH
Kazeta
Sram PG-1210, 11-50T, 12s
Hmotnost
15,9 kg
Nastavení tlumiče
Light compression, light rebound, air volume spacer 0.6
Zadní tlumič
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Sezóna
jaro/léto 24
Pohlaví
unisex
Barva
Grey
Velikost dodavatele
L
MONDRAKER MONDRAKER Raze, fog grey/nimbus grey/vortex grey, 2024
