MONDRAKER MONDRAKER Chrono Carbon DC, flame red/vortex grey/racing silver, 2025 Velikost M
Description and parameters
MONDRAKER MONDRAKER Chrono Carbon DC, flame red/vortex grey/racing silver, 2025
MONDRAKER MONDRAKER Chrono Carbon DC, flame red/vortex grey/racing silver, 2025
ParametersAdd to Compare
Root
E-shop
Velikost
L
Přehazovačka
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Hlavové složení
Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Vidlice
RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload RockShox OneLoc

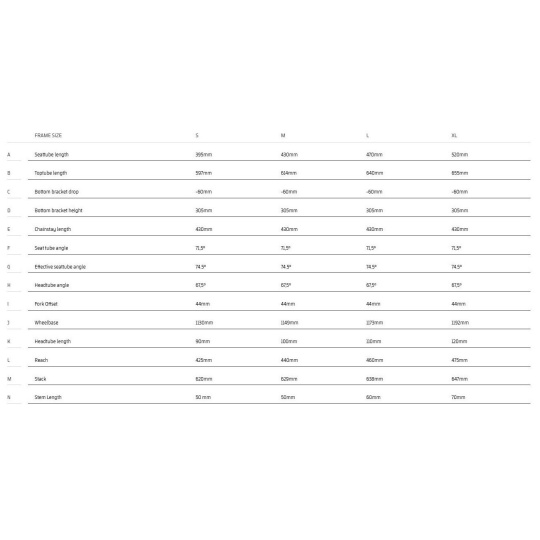

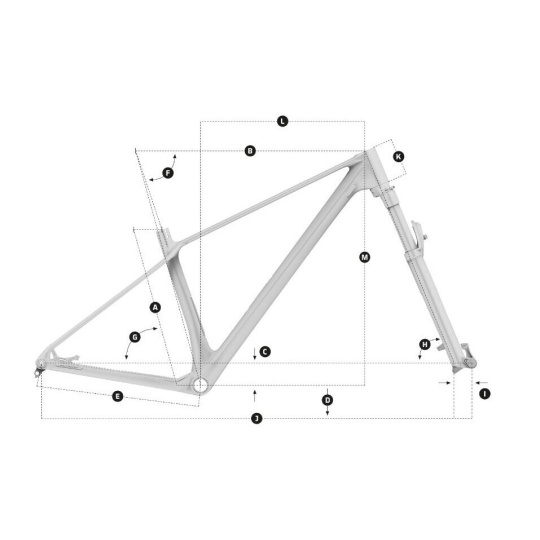

Velikosti
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Rám
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sedlo
Mondraker MDK Series, SRX, steel rail
Materiál rámu
carbon
Dráty
Mavic J-bemd steel round spokes
Typ vidlice
SUSPENSION FORK
Zadní brzda
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brzdové páčky
Sram Level, tooled reach adjust, lever pivot bushings
Představec
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5?, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Převodník
34T, steel, X-Sync 2
Sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Středové složení
Sram DUB BSA, sealed bearings, 73mm
Přední brzda
Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Velikost kol
29
Kliky
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Počet převodů
1X12
Ráfky
Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Řídítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9? backsweep, 0? upsweep, 31.8mm barbore
Řetěz
Sram SX Eagle, 12s, Powerlock
Zadní náboj
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Přední náboj
Mavic, Boost 15x110mm, IS 6 bolts
Zadní plášť
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Řadící páčka
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Přední plášť
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Patka přehazovačky
Sram UDH
Kazeta
Sram PG-1230, 11-50T, 12s
Hmotnost
12,2 kg
Sezóna
jaro/léto 25
Pohlaví
unisex
Barva
Red
Velikost dodavatele
L
Root
B2B
Shop type
SML
Activity
cycling PCI
Category
Hardware
SEO description
Horské kolo
Group
bicycle-HW
Subgroup
mtb-HW BIC
Eshop size group
size_frame
Size
XL
Supplier size group
supplier_size_hardware
Filter of specific parameters
HW
