MONDRAKER MONDRAKER Chaser, graphite/black, 2023 Velikost M
Beschreibung und Parameter

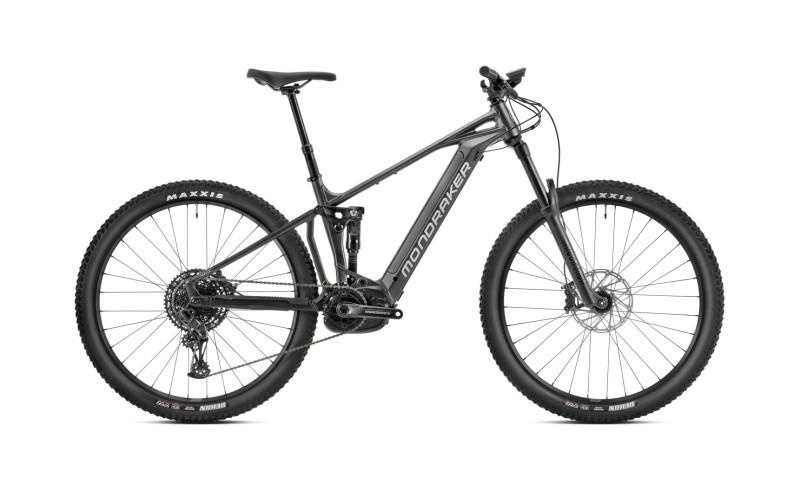

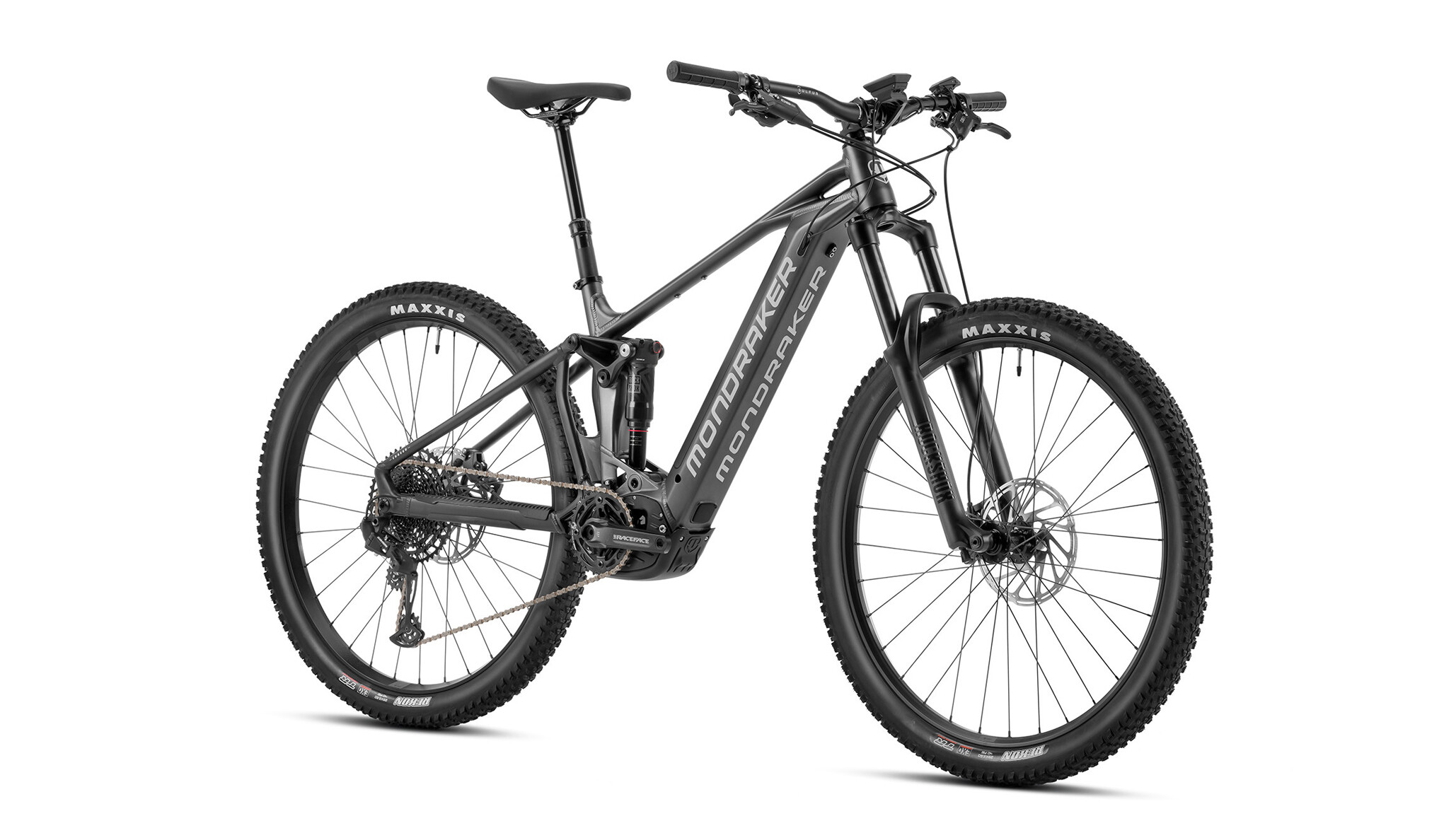

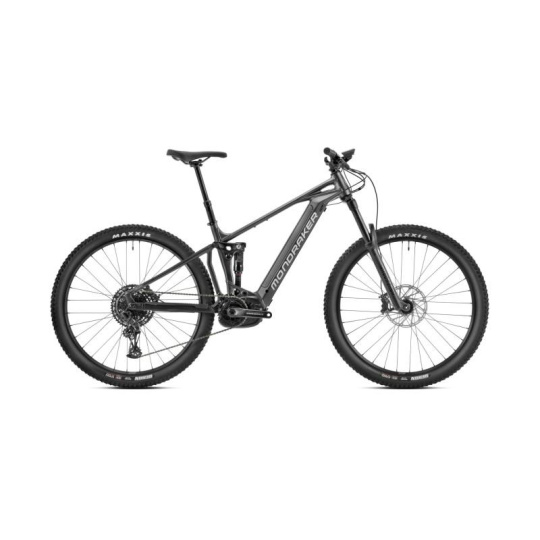

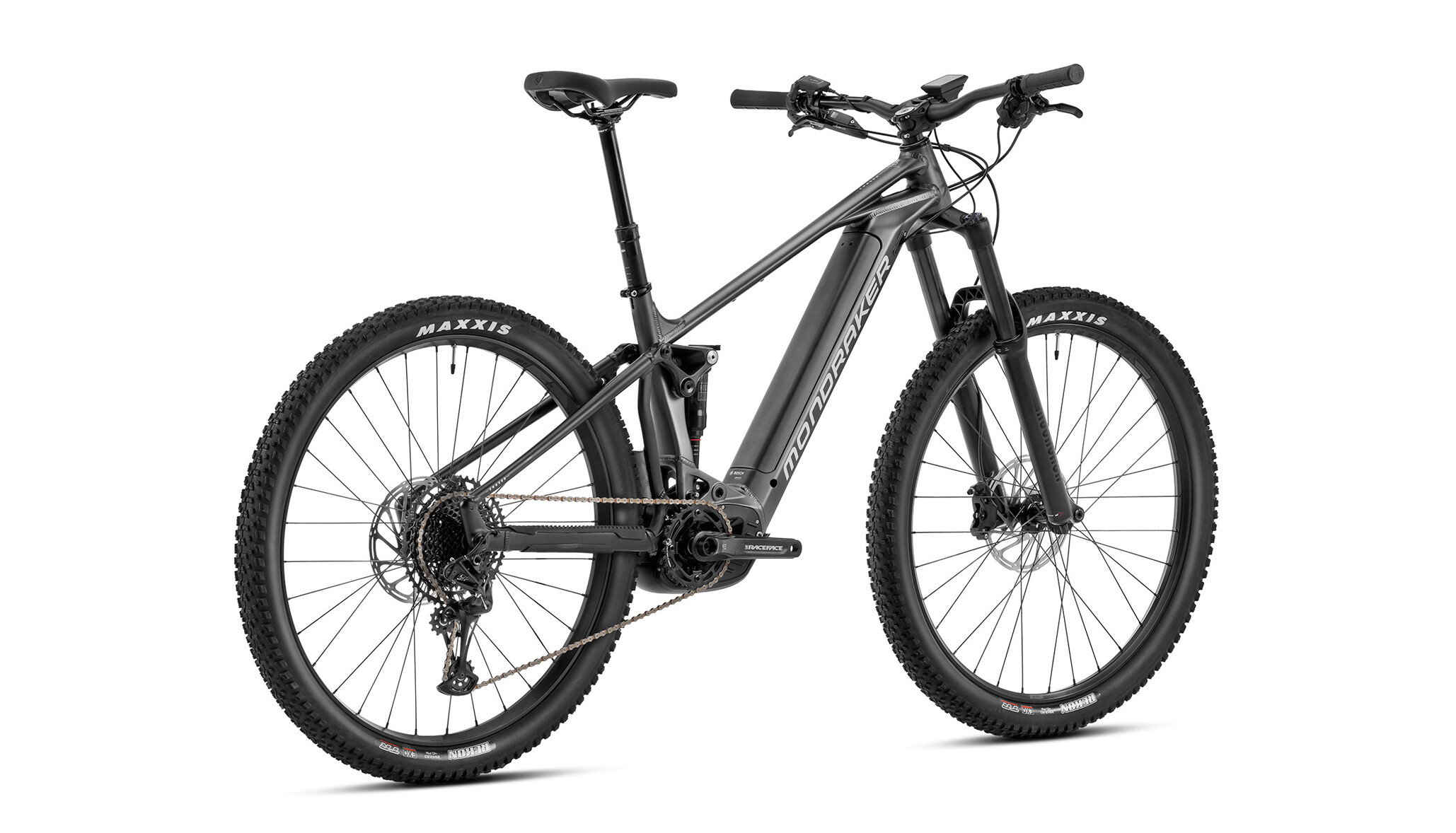

MONDRAKER MONDRAKER Chaser, graphite/black, 2023
MONDRAKER MONDRAKER Chaser, graphite/black, 2023
ParameterHinzufügen zum vergleichen
Root
E-shop
Velikost
L
Přehazovačka
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Hlavové složení
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ox45o, bottom 51.9x40x8x45ox45o
Vidlice
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

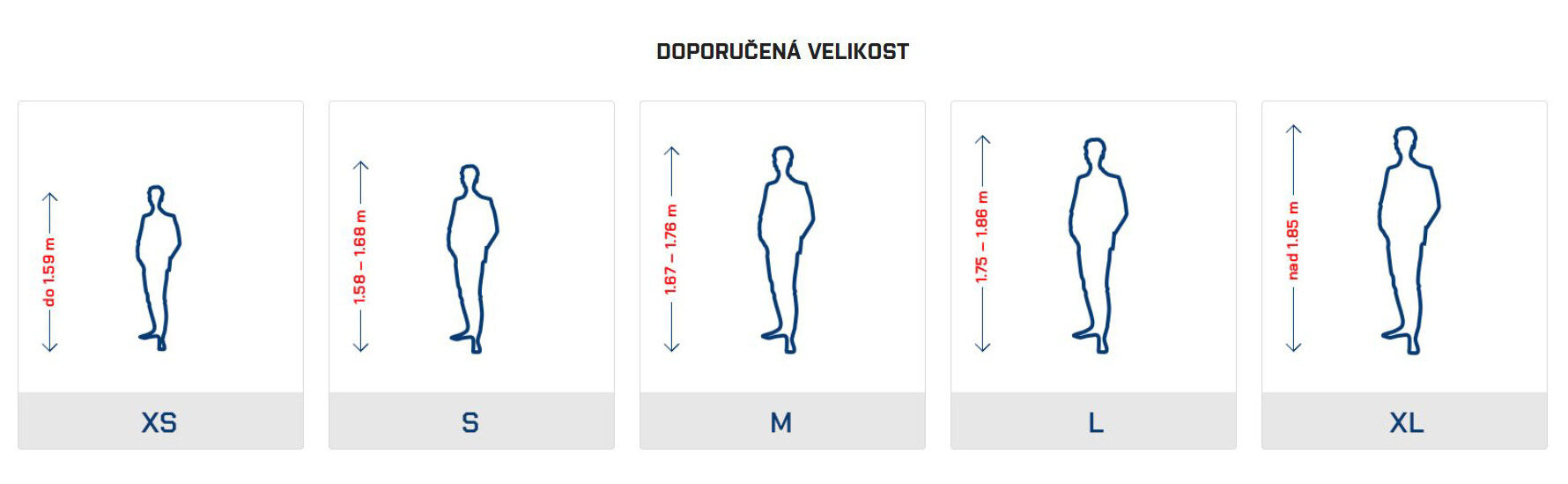

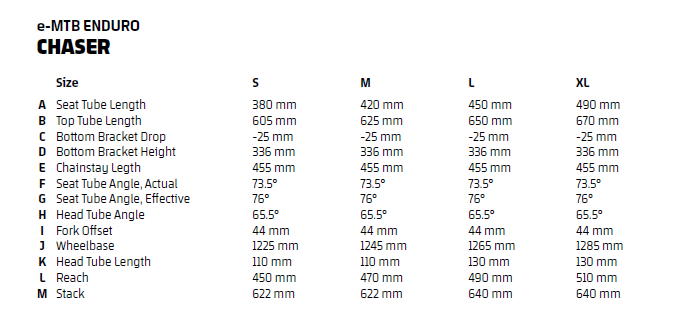

Velikosti
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rám
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sedlo
MDK ebike black
Materiál rámu
ALUMINIUM
Dráty
CN round stainless steel
Typ vidlice
SUSPENSION FORK
Zadní brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páčky
Sram DB8, tool-free reach adjust
Představec
Onoff Sulfur FG 30mm 0o, 6061 forged alloy, 31.8mm barbore
Převodník
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Přední brzda
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Velikost kol
29
Kliky
Race Face Aeffect ebike, 165mm
Počet převodů
1X12
Ráfky
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Řídítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9o backsweep, 5o upsweep, 31.8mm barbore
Řetěz
Sram SX Eagle, 12s, Powerlock
Zadní náboj
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Přední náboj
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Zadní plášť
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Řadící páčka
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Přední plášť
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Patka přehazovačky
Mondraker M068
Kazeta
Sram PG-1210, 11-50T, 12s
Hmotnost
25,2 Kg
Displej
Bosch Kiox 300
Motor
Bosch Performance Line CX Cruise (25Km/h) Smart System
Baterie
Bosch Powertube 625Wh
Nastavení tlumiče
DebonAir Progressive, Light compression, Linear rebound, 1 Token
Zadní tlumič
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Sezóna
jaro/léto 23
Pohlaví
unisex
Barva
Mix
Velikost dodavatele
L
Root
B2B
Shop type
SML
Activity
cycling PCI
Category
Hardware
SEO description
Horské elektrokolo
Group
e-bicycle-HW
Subgroup
e-mtb-HW EBC
Eshop size group
size_frame
Size
M
